Wide Flange Beam and Channel

Wide Flange Beams:

• 20’ through 65’ long in 5’ increments
• W4”-40”

Channels:

• 20’ through 65’ long in 5’ increments
• Miscellaneous Channel 4”-18”
• Structural Channel 3”-15”
• Bar Channel ¾” – 2-1/2”
• Junior Channel 8”-12”

Specifications:

• A36 Standard specification for carbon structural steel
• A572 Standard specification for high-strength low-alloy structural steel
• A588 Standard specification for high-strength low-alloy structural steel – weathering applications
• A709 Standard specification for carbon and high-strength low-alloy shapes
  • This specification covers shapes, and bars intended for use in bridges. Seven grades are available in four yield strengths
• A992 Standard specification for steel for structural shapes for use in building framing

---

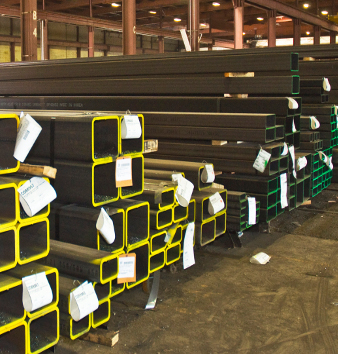

Tubing and Pipe

Tube:

• DOM, CDSMLS and specialty shapes upon request
• Round ½” through 18” diameter .049 – .500 wall
• Square ½” through 16” square .049 – .625 wall
• Rectangular 1 x ½ through 20 x 12 rect. .049 – .625 wall



Structural Tube:

• 20’ through 60’ in 4 foot increments
• .188 through .625 wall

Specifications:

• A500A/B/C Standard specification for cold formed welded tube

Pipe:

• 20,21 & 40’ stocking lengths (Inquire on specialty lengths)
• Bare and Coated (galvanized available upon request)
• Schedule 40 and 80 (schedule 10, 30 available upon request)

Specifications:

• A53A/B Standard specifications for welded and seamless, hydrostatically-tested, weldable, formable pipe.
• A513 Standard specification for mechanical tubing – not hydrostatically tested

---
